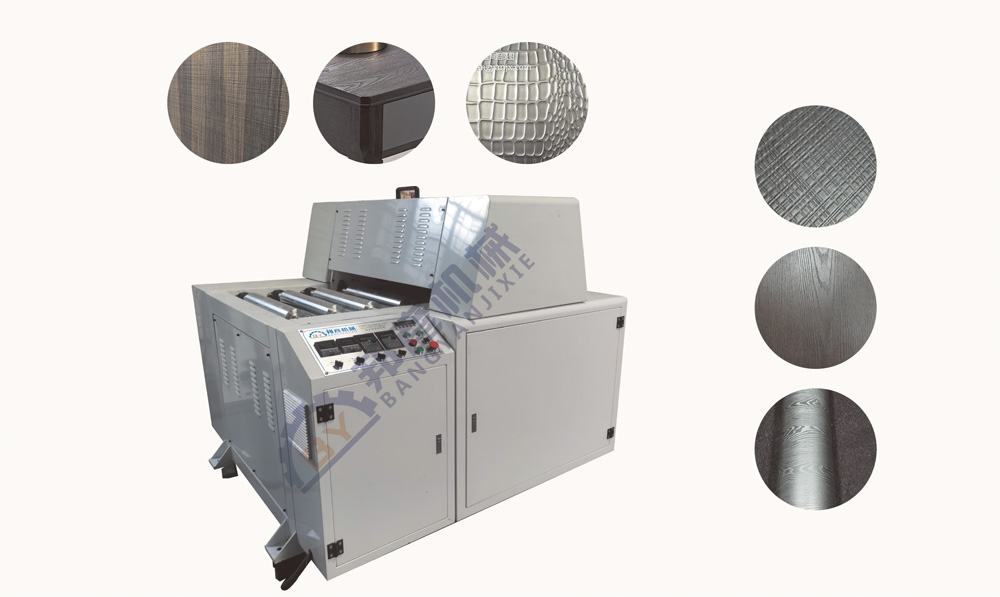

压纹机
EMBOSSMENT MACHINE 用途与特征 Purpose
本设备主要适用于家具板材，橱柜、板材、门、地板等进行压纹；可加工板材，指接板、密度板、实木（白杨贴皮）、木塑等；
This equipment is suited for furniture,cabinet,wood board,door,floor etc doing surface embossment;and can machineable the MDF,solid wood,plastics and so on.
压纹辊采用激光雕刻，纹路清晰可见，拆装方便，定位精准；
The embossment roller using laser engraving ,is very clear to see the printed vein ,and easy to dismounting and registration.
变频调速，配加温装置，自动保护和缓冲装置；
The speed adjusted by transducer ,and configuration with warming,self-protection and buffer device;
- 产品型号 Model
- BY-1P620
- BY-1P1320
- 工作宽度 Working width
- 620mm
- 1320mm
- 加工厚度 Working thickness
- 3-80mm
- 3-80mm
- 输送速度 Feeding speed
- 1-12m/min
- 1-12m/min
- 总功率 Total power
- 25KW
- 25KW
- 辊加热功率 Roller-heating power
- 7.5kw
- 16kw
- 机械尺寸 Machine dimension
- 1800*2100*1500
- 1800*2800*1500

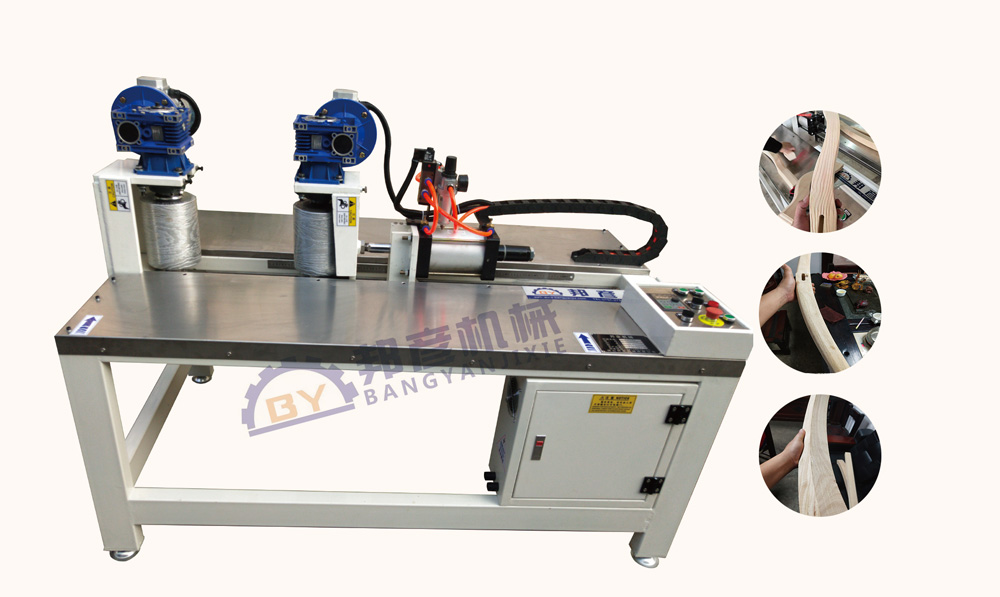

异形侧边压纹机
PROFILED SIDE EMBOSSING MACHINE 用途与特征 Purpose
本设备适用于家具板材、橱柜、门、两侧及弯料、大小头及异形材料表面压纹处理，经本机械处理后的板材表面具有很强的仿古立体感。
This equipment is suitable for embossing the surface of furniture plates, cabinets, doors, both sides andbending materials, size heads and special-shaped materials, The surface of the plates after this mechanicatreatment has a strong sense of antique three-dimensional.
压纹深度可自行调控，满足客户不同的效果要求。
The embossing depth can be adjusted to meet different requirements of customers.
送料速度采用变频调速。
The feeding speed is controlled by frequency conversion.
- 产品型号 Model
- BY-2P600
- 工作宽度 Working width
- 600mm
- 加工厚度 Working thickness
- 5-200mm
- 输送速度 Feeding speed
- 1-12m/min
- 总功率 Total power
- 3.5KW
- 机械尺寸 Machine dimension
- 1500*1000*1200

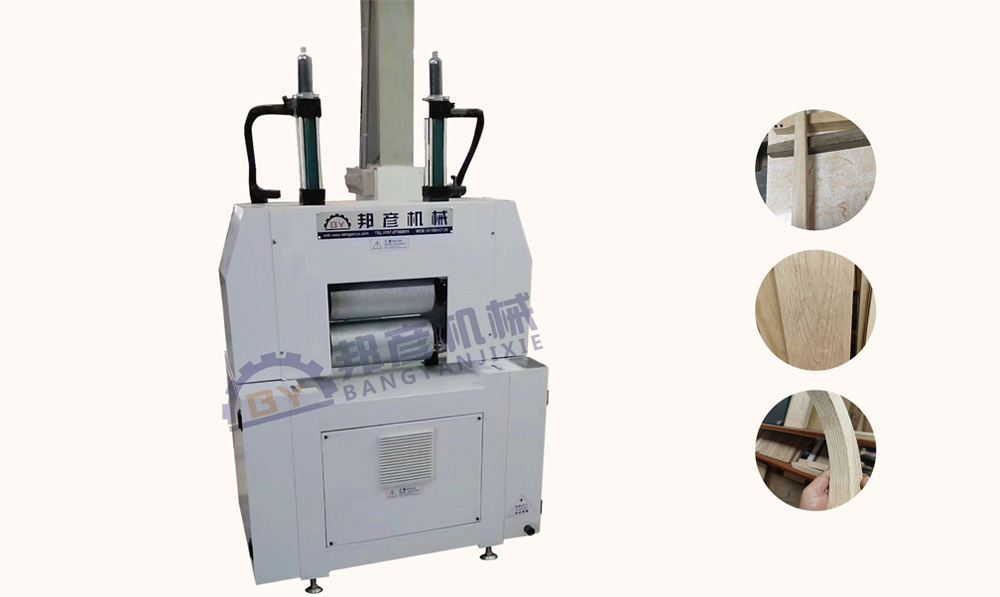

异形上下压纹机
PROFILED UPPER AND LOWER EMBOSSING MACHINE 用途与特征 Purpose
本设备适用于家具板材、橱柜、门、两侧及弯料、大小头及异形材料表面压纹处理，经本机械处理后的板材表面具有很强的仿古立体感。
This equipment is suitable for embossing the surface of furniture plates, cabinets, doors, both sides andbending materials, size heads and special-shaped materials, The surface of the plates after this mechanicatreatment has a strong sense of antique three-dimensional.
压纹深度可自行调控，满足客户不同的效果要求。
The embossing depth can be adjusted to meet different requirements of customers.
送料速度采用变频调速。
The feeding speed is controlled by frequency conversion.
- 产品型号 Model
- BY-2P260
- 工作宽度 Working width
- 260mm
- 加工厚度 Working thickness
- 5-200mm
- 输送速度 Feeding speed
- 1-12m/min
- 总功率 Total power
- 3KW
- 机械尺寸 Machine dimension
- 600*800*1700
